Accuracy with MBMet 901 Series for Unyielding & Uncompromised Atmospheric Measurements.
IEC 61000-4-8
IEC 61000-4-18

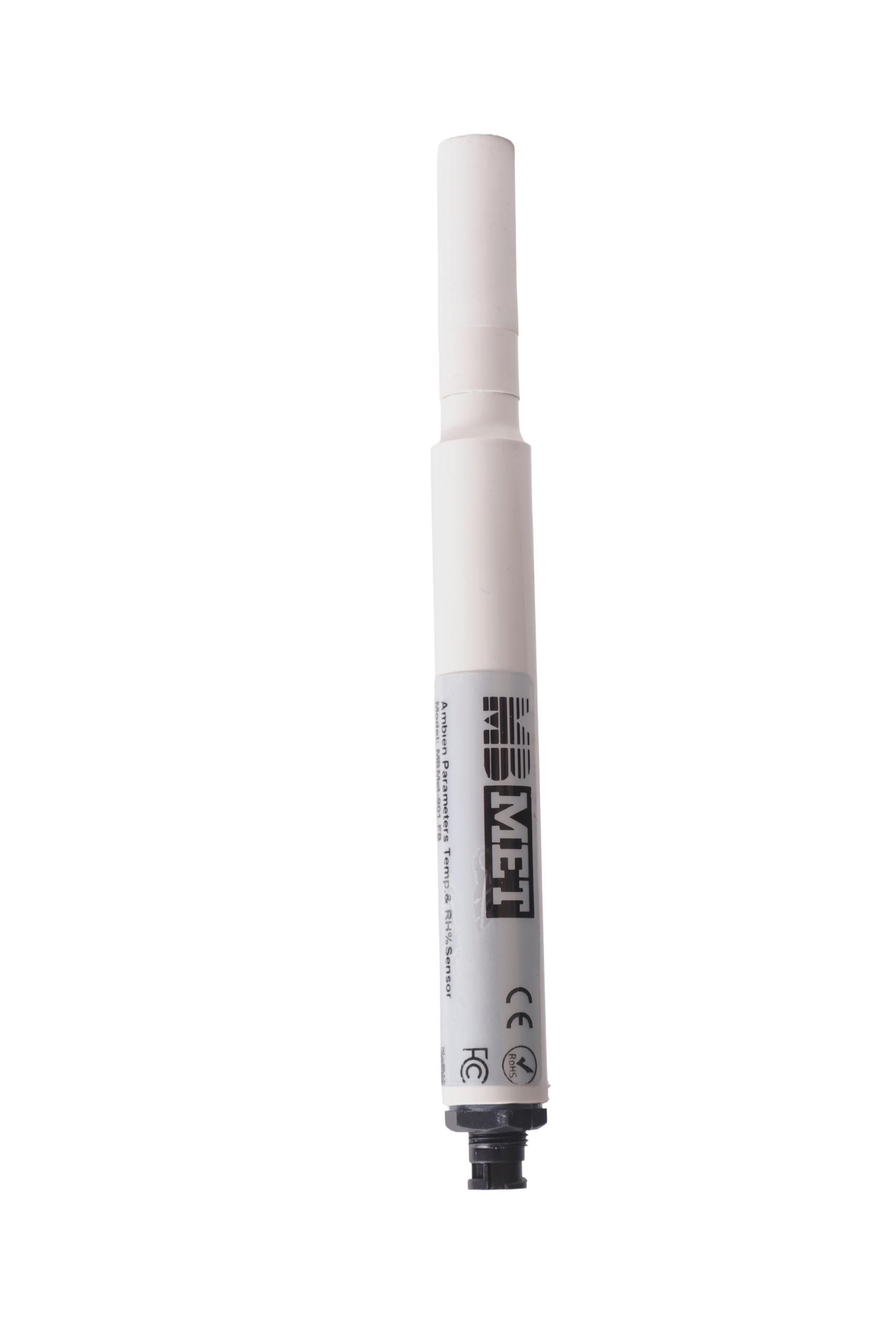

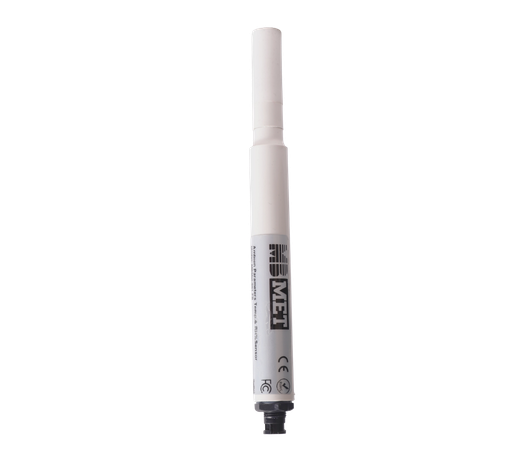

The MBMet 901 Series offers highly accurate, fully calibrated, and stable measurement of atmospheric air temperature, relative humidity, barometric pressure, air density, and dew point. Low power consumption, fast response time, and long-term stability make the MBMet 901 ideal for a wide range of applications, from portable devices to products designed for harsh environments. When exposed to sunlight, the sensor must be housed in a radiation shield. The MBMet-901 Sensor uses the latest generation relative humidity, temperature, and barometric pressure sensing components to deliver reliable and repeatable measurements. The sensor filter is field-replaceable, making maintenance easy and reducing downtime. The MBMet-901 Series Sensor is tested to perform in harsh environments, especially in conditions with high electromagnetic interference, making it ideal for solar plants, wind resource assessment, electrical substations, and similar applications.
| AMBIENT TEMPERATURE | |
|---|---|
| Measuring Range | -40°C to +125°C |
| Resolution | 0.001°C |
| Accuracy (Typical) | ±0.2°C |
| Response Time | 0.2 |
| Stability | <0.03°C per year |
| DEW POINT | |
|---|---|
| Measuring Range | -40°C to 105°C |
| Resolution | 0.001°C |
| Accuracy | Calculated |
| Response Time | 8-30s |
| AIR DENSITY | |
|---|---|
| Accuracy | Calculation |
| Calculated Time | 5s |
| RELATIVE HUMIDITY | |
|---|---|
| Measuring Range | 0 to 100%RH |
| Resolution | 0.001%RH |
| Accuracy (At 25°C) | ±2%RH |
| Response Time | 4s |
| Stability | <0.2%RH per year |
| BAROMETRIC PRESSURE | |
|---|---|
| Measuring Range | 300 to 1250 hpa |
| Resolution | 0.001 hPa |
| Accuracy | ±0.4 hPa |
| Response Time | 0.1s |
| Stability | ±1 hPa Per Year |
