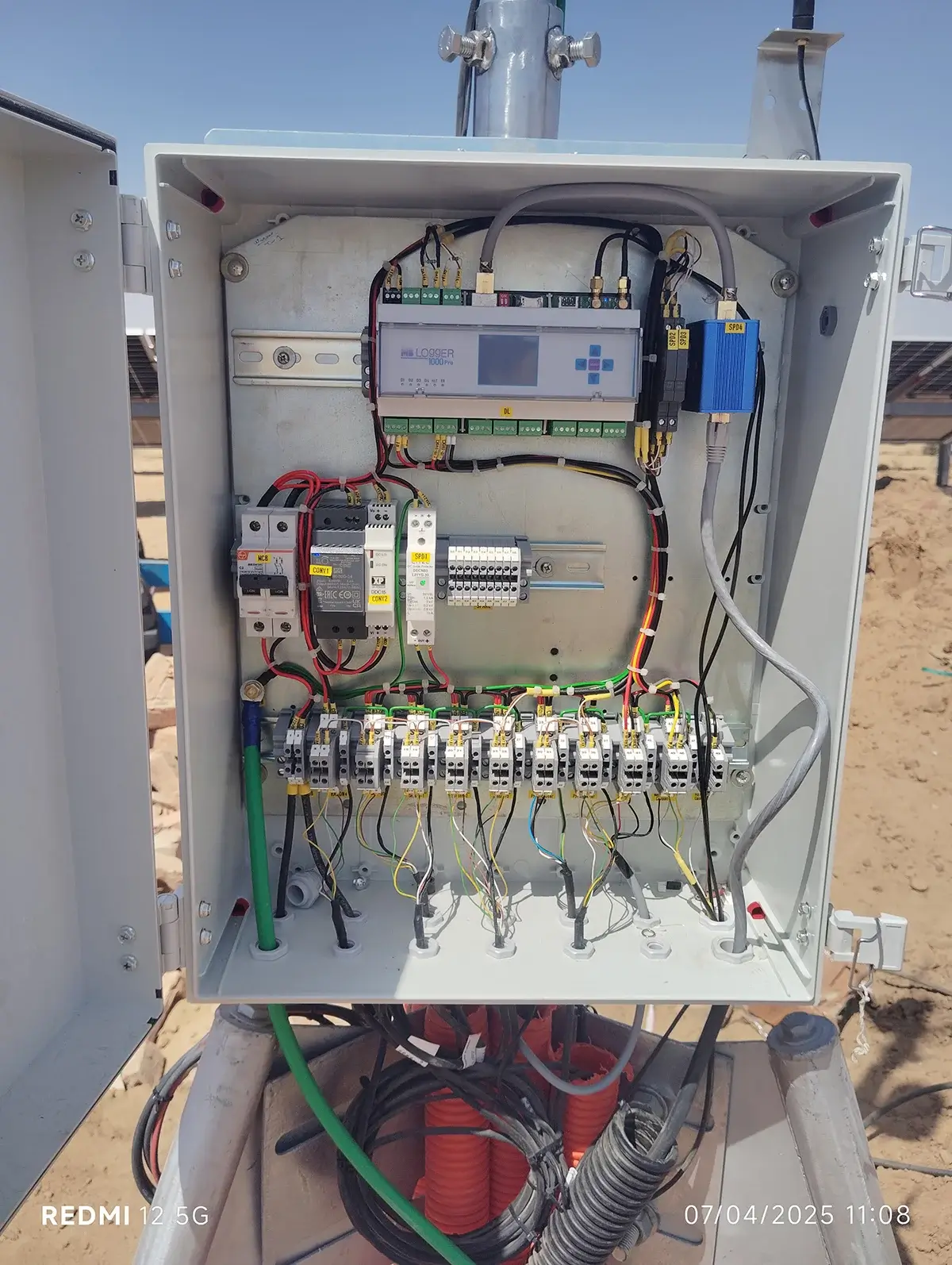

High Performance Datalogger – MBLogger 1000 Pro

The MBlogger 1000 Pro Datalogger is reliable,provides accurate measurements,and has industry-grade commu nication solutions featuring data logging capacity from various industrial devices and Meteorological Sensors.

The MBlogger 1000 Pro is the Flagship Datalogger of the MBLogger Series from MBMet.
It provides Accurate and Reliable Measurement and Control for Many Critical Applications
such as Meteorology, Renewable Plant Monitoring, Hydrological Systems, Agriculture...

Highlights

Operational in Extreme environments of -40C to +70C.
OLED Display for quick Troubleshooting.
Built-in Webserver with Libraries for easy and efficient Datalogger Configuration.
Data Telemetry via MODBUS, FTP, MQTT...

The MBlogger 1000 Pro Datalogger is reliable,provides accurate measurements,and has industry-grade commu nication solutions featuring data logging capacity from various industrial devices and Meteorological Sensors.

The MBlogger 1000 Pro is the Flagship Datalogger of the MBLogger Series from MBMet.
It provides Accurate and Reliable Measurement and Control for Many Critical Applications
such as Meteorology, Renewable Plant Monitoring, Hydrological Systems, Agriculture
and Research, etc.

The MBLogger 1000 Pro uses a Powerful 32-Bit ARM Processor along with 2 x 24-Bit ADCs
to Ensure Accurate and High-Resolution Data Collection from Sensitive Equipment.
The Device includes a Battery Backed Real-Time-Clock (RTC) which can be updated either
through the Datalogger’s Built-In GPS, or External GPS units via SNTP Protocol.
The Built-in GPS Module also ensures Accurate Geo Location of the Station where the
Datalogger is Installed. The Datalogger also Comes with a Built-In Cellular Modem
which is capable of Transmitting Data to the Cloud via multiple Protocols Such as
MQTT and FTP. The Device boasts Multiple RS-485 / RS-232 ports, 17 Analog Input Channels,
and 1 Ethernet Port for Data Collection and Communication.

All Datalogger programming is done via the Device’s Built-in Webserver, making it
extremely easy to Program and Install. The Datalogger also provides Advanced Analytics
of the Data such as Filtering, Min / Max, Deviation, along with some Advanced information
such as Sunrise and Sunset Timings, Daily Cumulative Energy, Daily Cumulative Rainfall,
Albedo, Sunshine Duration, etc.

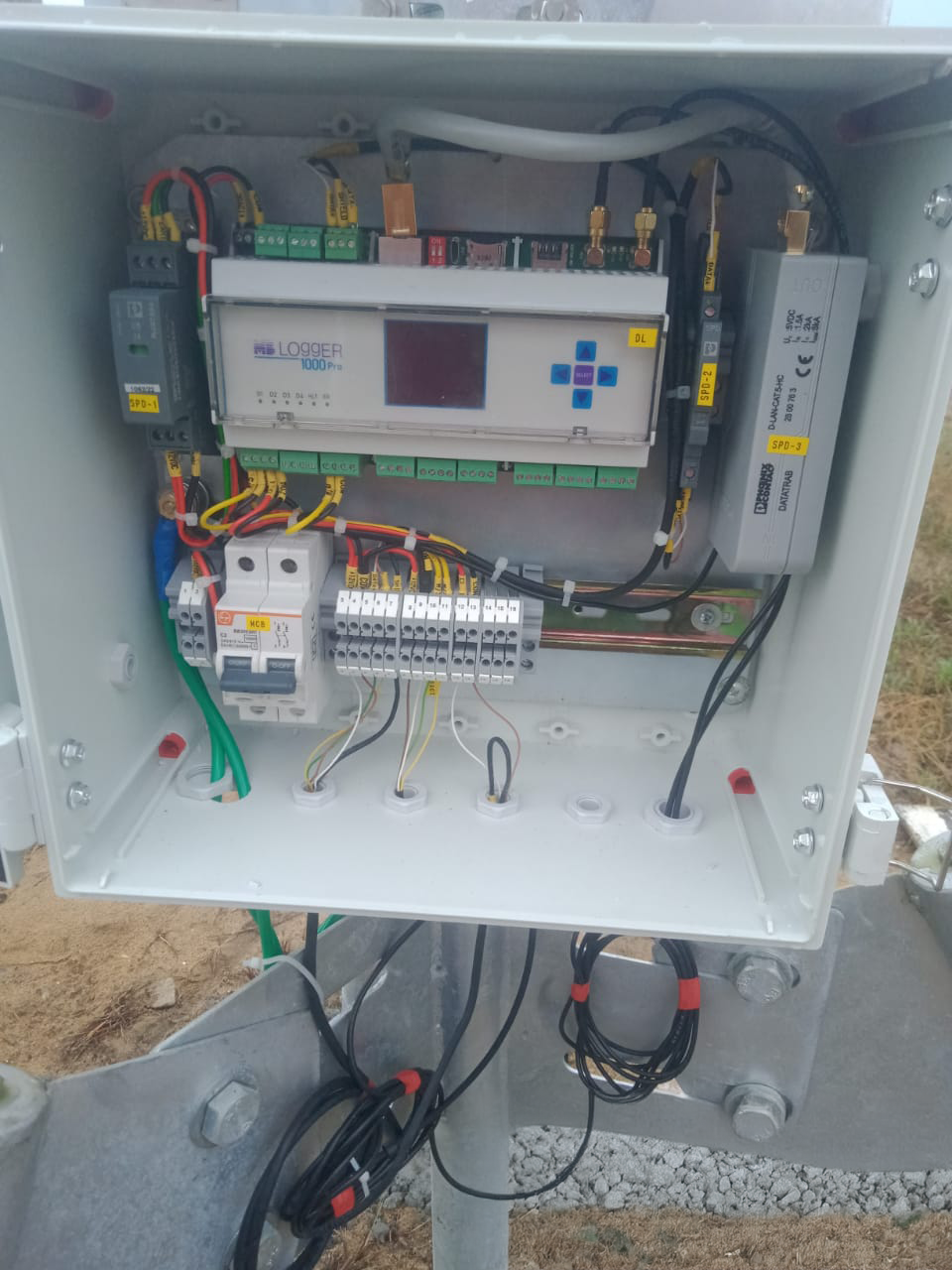

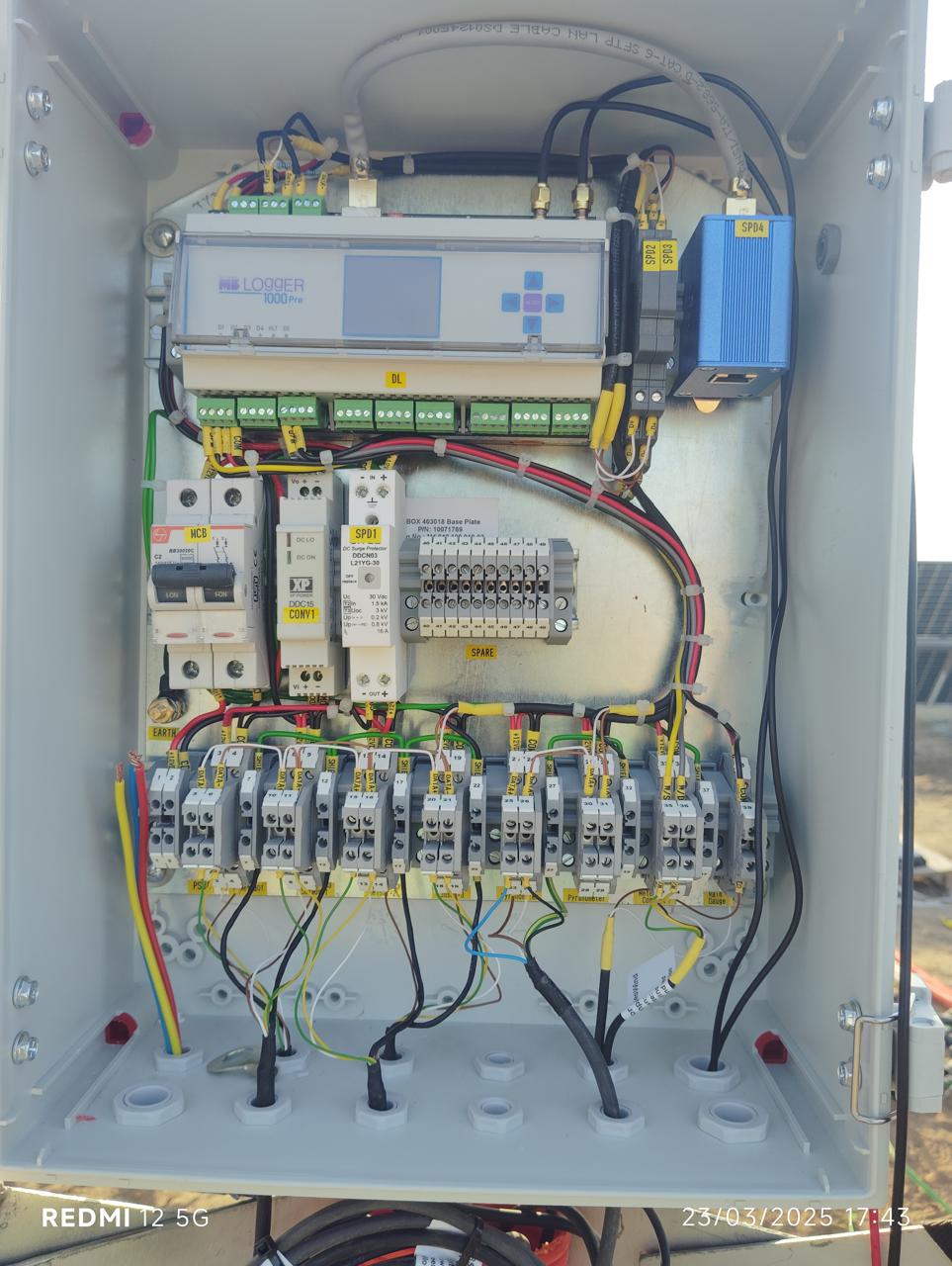

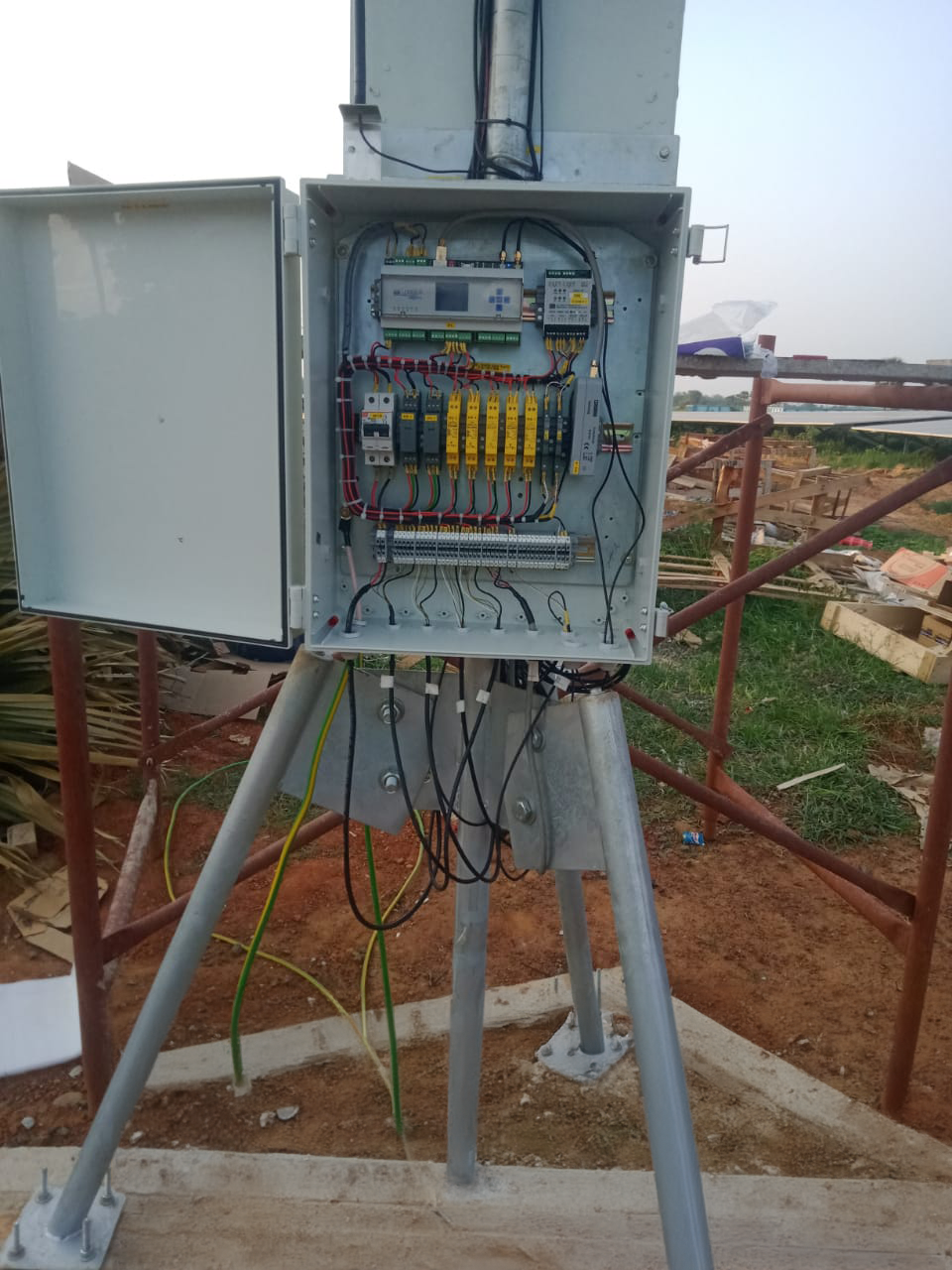

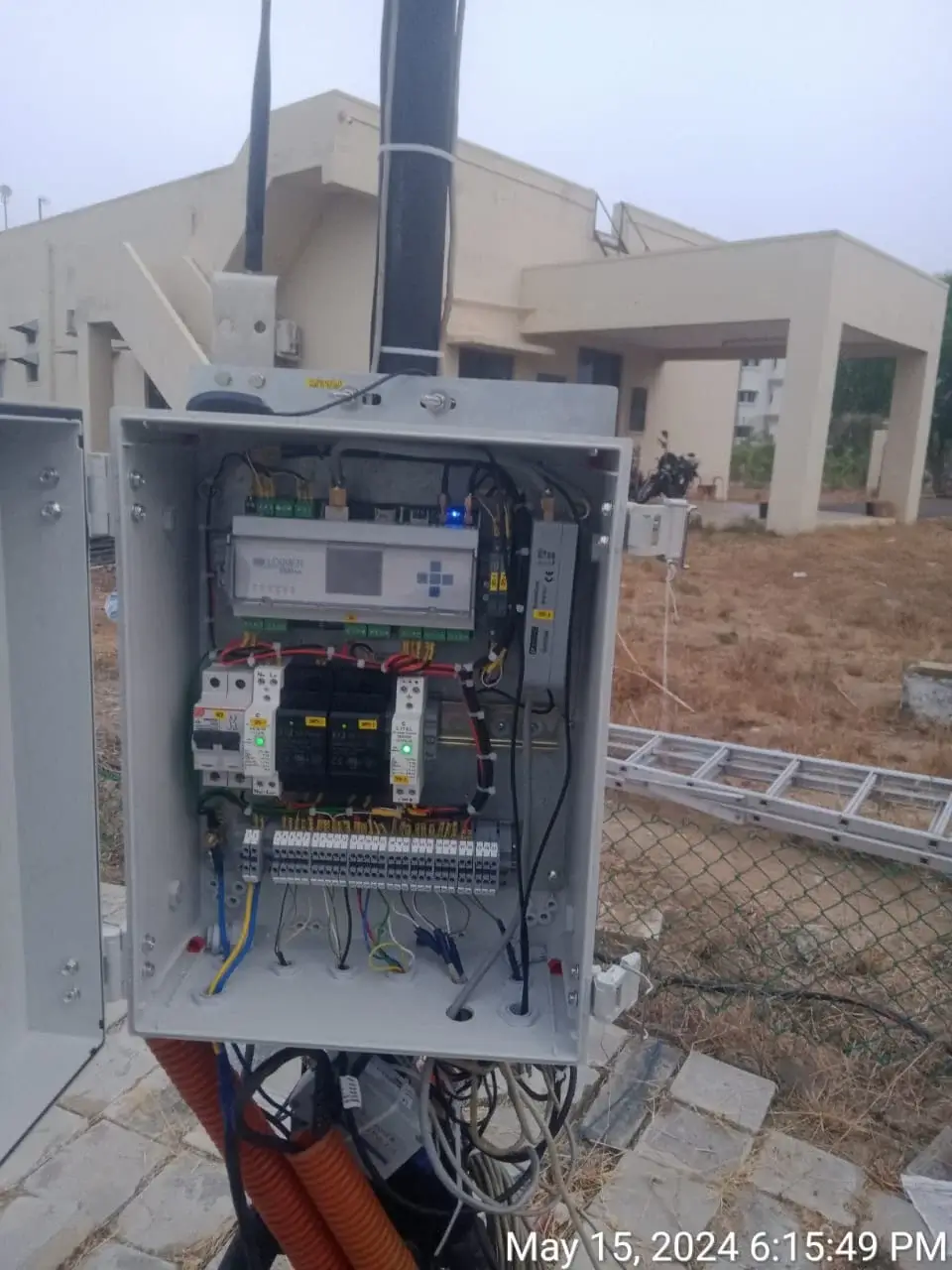

The Datalogger is Designed to be Modular in Nature. Combined with Expansion Modules
from the MBMet Range (Additional Digital Outputs, IOs) along with the Powerful MBMet
Cloud Solution for Data Analytics and Viewing, the MBLogger 1000 Pro offers a Powerful
and Reliable Solution for all Monitoring Needs.

Highlights

Operational in Extreme environments of -40C to +70C.
OLED Display for quick Troubleshooting.
Built-in Webserver with Libraries for easy and efficient Datalogger Configuration.
Data Telemetry via MODBUS, FTP, MQTT.
Built-In GPS for Time Synchronisation and Geo Location Tagging.
Configurable Data Logging and Update Rates.
Internal Lithium Battery for RTC.
Broad Input Voltage Range of 9 – 32 VDC.
Provides Easy Sensor integration with RS-232, RS-485 and ETH Ports.
Measures and Captures Rapidly changing Data with up to 10Hz Sampling Rate for Analog Channels and 100Hz Input Frequency for Pulse Inputs.
Calculates Sunrise & Sunset, Daily Sunshine Duration, Albedo Ratio, Daily Rainfall.
Expansion Modules available for Greater Monitoring and Control.
Control of Pyranometer Ventilation Units.

General Specifications
Micro-Processor	32 bits ARM Processor
RTC	Temperature compensated RTC
ADC	2*24-Bit

DATA LOGGING
Datalogging Time Period	Site Configurable
Expandable Memory	4GB EMMC or 16GB SD Card

ELECTRICAL
Voltage Input	9-32VDC
Power Consumption	With Cellular Model : 4.10 Watt at 12VDC Without Cellular Model : 2.75 Watt at 12VDC

INBUILT MODEM / GPS (OPTIONAL)
Network	Quad-Band 4G Modem
Frequency Band	LTE CAT 4 GSM : 900/1800

ENVIRONMENTAL
Operating Temperature	-40°C to +70°C
Storage Temperature	-50°C to +80°C
Humidity	95% max – noncondensing

PHYSICAL
Protection	IP42
Dimensions (W × H × L)	90 × 62 × 162 mm
Mounting	DIN Rail
Weight	500g (Approx.)
Housing Material	Polycarbonate

SPECIAL FUNCTIONS (LICENSED SEPARATELY)
Day Sun Rise and Sunset time
Day Duration
Day Solar Energy
Day Sunshine duration
Albedometer Ratio
Day Rainfall

COLOR OLED DISPLAY AND KEYS
Display Parameters	IED, Sensors, Alarm Conditions, Display Parameters ETH Gateway status, File transfer status, Modem Signal Strength, Communication Status etc.
Display	Graphic Color 160 × 120 pixel resolution
Keypad	Four buttons capacitive keypad

PORTS
Serial Ports	1 RS-485 Port 1 RS-485 and RS-232 Port (software configurable)
Configurable Baud Rate	9,600 and 19,200 bps
Optical Isolation	2.5KV RMS
Ethernet Port	1
Protocols Supported	1.MODBUS TCP/IP Master and Slave, SNTP Client, HTTP, FTP, MQTT, UDP, TCP, IPV4
Datalogger Config./ Diagnostics	via in-built web server

ADD ON MODULE
Model	MBMET-404
Function	Digital Output Module
Number of Outputs	4

INPUTS
Analog Inputs	13
4–20mA (24 bits)	4
mV (0–10,000mV – differential – 24 bits)	4
mV (0–1,000mV – differential – 24 bits)	4
PT100 / PT1000	1
Sampling rate	10Hz
Accuracy	±0.1%
Statistics	Avg, Min, Max, Std Deviation, Integration etc.
Digital Inputs
4 (Optically Isolated)
Max Input Frequency	<100Hz
Statistics	Totalisation, Wind Speed calculation etc.

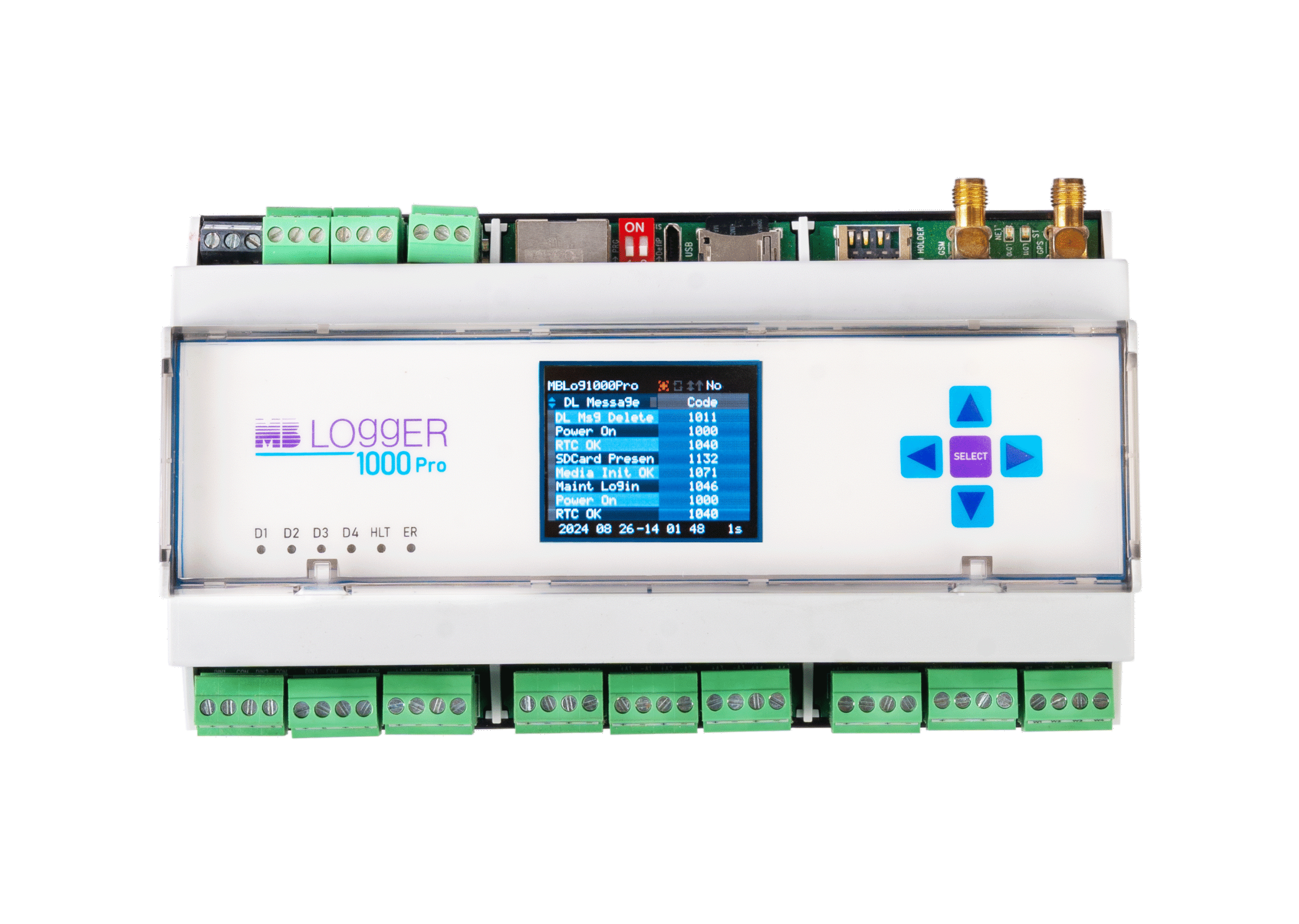

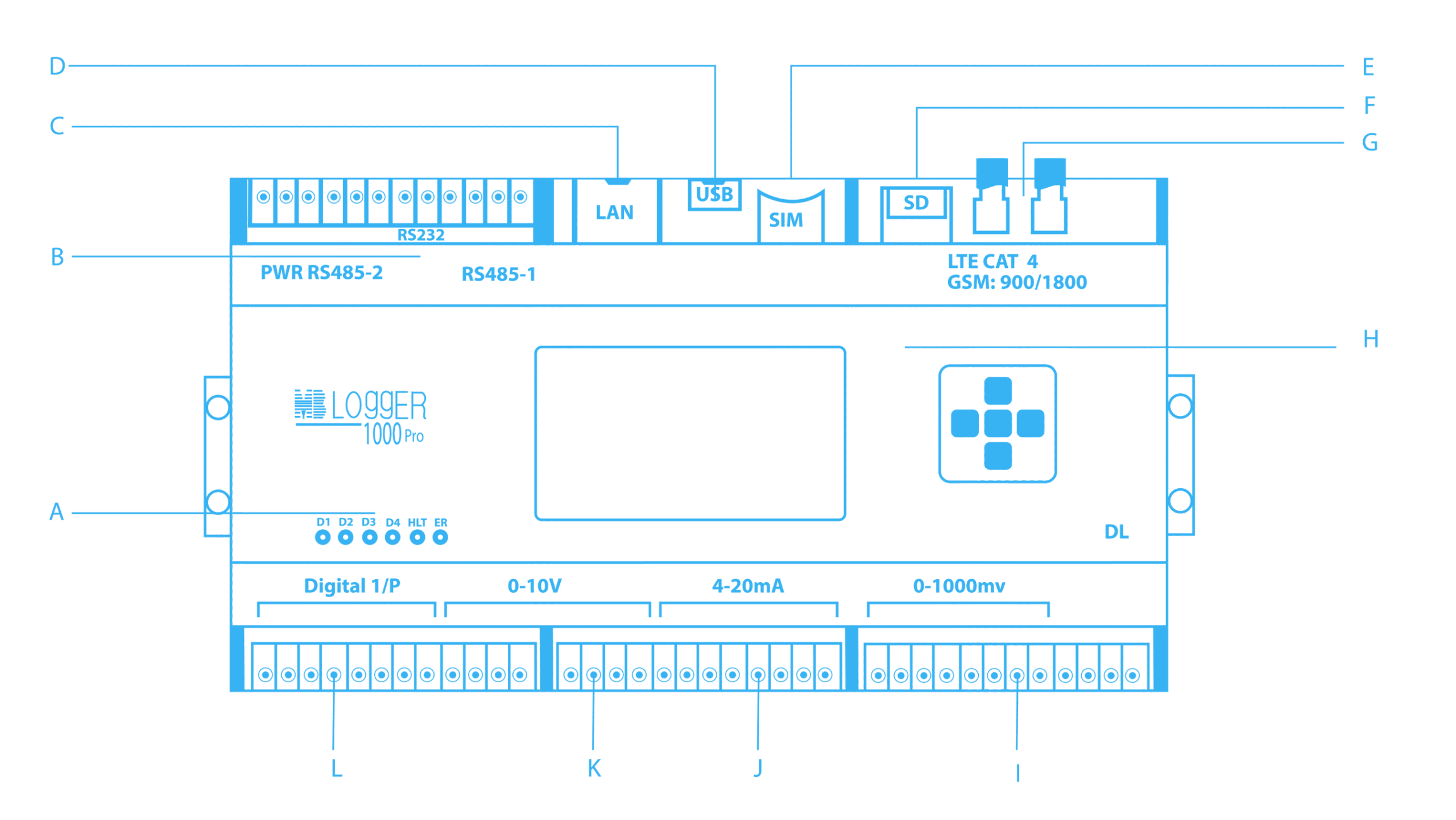

Item	32 bits ARM Processor	Description
A	Status LEDs	Status LEDs for easy Troubleshooting and Checking Power / Communication Status
C	LAN Port	LAN Port for Data Communication and Telemetry via various protocols, Datalogger Configuration via Webserver
D	Micro USB Port	Micro USB Port for Datalogger Firmware Upgradation
E	SIM Card Slot	4G / 3G SIM Card Slot suitable for Global Use.
F	Micro SD Card Slot	Micro SD Card Slot for Up to 16GB of Data Storage
G	GPS and Cellular Antenna	GPS for Geo Location Tagging and Time Sychronisation, Calculation of Sunrise & Sunset Timings
B	RS-232, RS-485 Ports	Micro SD Card Slot for Up to 16GB of Data Storage
L	Digital Inputs	4 x Digital / Pulse Inputs Available for connection of Sensors
K	0 – 10V Inputs	4 x 0 – 10 V 24-Bit Inputs for Devices having Voltage Output
J	4 – 20mA Inputs	4 x 4 – 20 mA 24-Bit Inputs for Devices having Mili Ampere Output
I	0 – 1000 mV Inputs	4 x 0 – 1000 mV 24-Bit Inputs for Devices having Milivolt Output
H	OLED Display and Keypads	Display Screen and Keypads for easy Diagnostics
