Solar Irradiation Sensor - MBMet-500
MBMet 500 Solar Irradiance Sensor: Accurate and Cost-Effective Measurement for PV Systems
-
IEC 61000-4-8
(Power Frequency Magnetic Field Immunity Test)
-
IEC 61000-4-18
(Damped Oscillatory Wave Immunity Test)
-
-
-
-
A precision solar irradiance sensor tailored for PV systems. Its spectral response mirrors PV arrays, with flexible analog/digital output options. Your solar efficiency ally.
The MBMet-500 Solar Irradiance Sensor is a high-precision, all-in-one solution for measuring solar irradiation. Ideal for monitoring photovoltaic (PV) systems, both rooftop and ground-mounted this sensor provides multiple measurement options, including solar irradiation, ambient air temperature, and PV module temperature. It is also spectrally matched to PV arrays, ensuring accurate readings.
The Sensor MBMet-500 is housed in a rugged cast aluminum enclosure that is IP65-rated for protection against dust and water. It is also equipped with an RS-485 interface for easy integration with data acquisition systems. The sensor is easy to install and use, making it a great choice for both professional and DIY solar installers.
Benefits & Features
- Accurate and repeatable measurements.
- Temperature-compensated Solar Irradiation measurement.
- Analog input channels can be configured individually at the site.
- Option for external Air or PV Module Temperature measurement.
- Site configurable temperature units - C°, °F or °K
- Housed in robust cast aluminum IP65 enclosure.
- Each sensor is individually calibrated
| Technical Specifications | |
|---|---|
| Input Voltage. | 9–32 VDC |
| CELL TEMPERATURE | |
|---|---|
| MEASURING RANGE | -40°C TO 90°C |
| Accuracy | ±0.3% FS |
| Resolution | 0.1 |
| Response time | 2-3 seconds |
| AMBIENT AIR TEMPERATURE (INTEGRATED SENSOR) 500B | |
|---|---|
| SENSOR TYPE | RTD PT100 |
| MEASURING RANGE | -40°C to 90°C |
| ACCURACY | ±0.3% FS |
| RESOLUTION | 0.1 |
| RESPONSE TIME | 3-5 seconds |
| AMBIENT AIR TEMPERATURE (EXTERNAL SENSOR WITH THREE METERS SILICON CABLE) 500C | |
|---|---|
| SENSOR TYPE | RTD PT100 |
| MEASURING RANGE | -40°C to 90°C |
| ACCURACY | ±0.3% FS |
| RESOLUTION | 0.1 |
| RESPONSE TIME | 3-5 seconds |
| SOLAR IRRADIATION | |
|---|---|
| Sensor Type | Monocrystalline Silicon (85mm x 64mm) |
| PV MODULE TEMPERATURE (EXTERNAL SENSOR WITH THREE METERS SILICON CABLE) 500D | |
|---|---|
| SENSOR TYPE | RTD PT100 |
| MEASURING RANGE | -40°C to 90°C |
| ACCURACY | ±0.3% FS |
| RESOLUTION | 0.1 |
| RESPONSE TIME | 3-5 seconds |
| General Specifications | |
|---|---|
| Irradiation Sensor Enclosure | Cast Aluminum |
| Ingress Protection | IP65 |

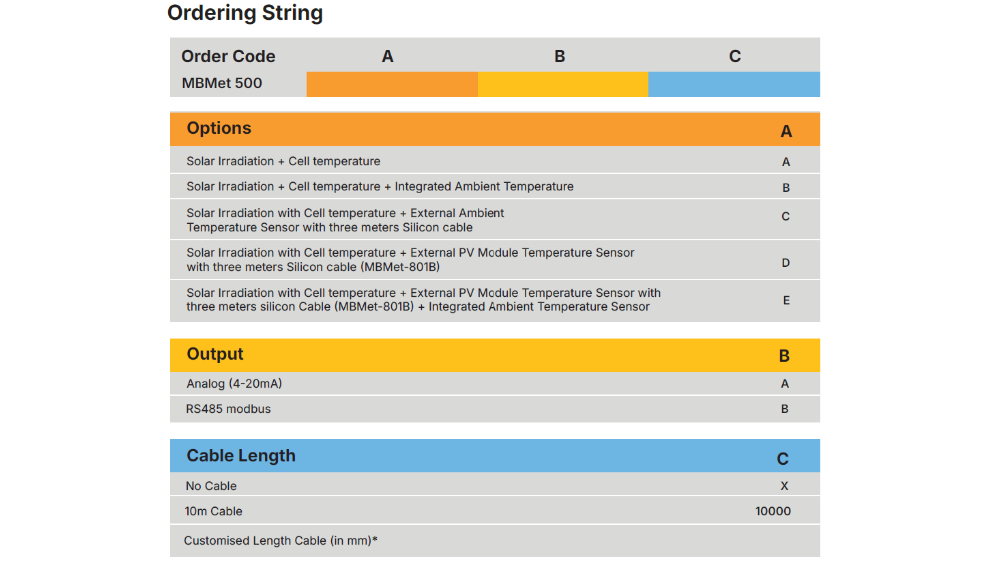

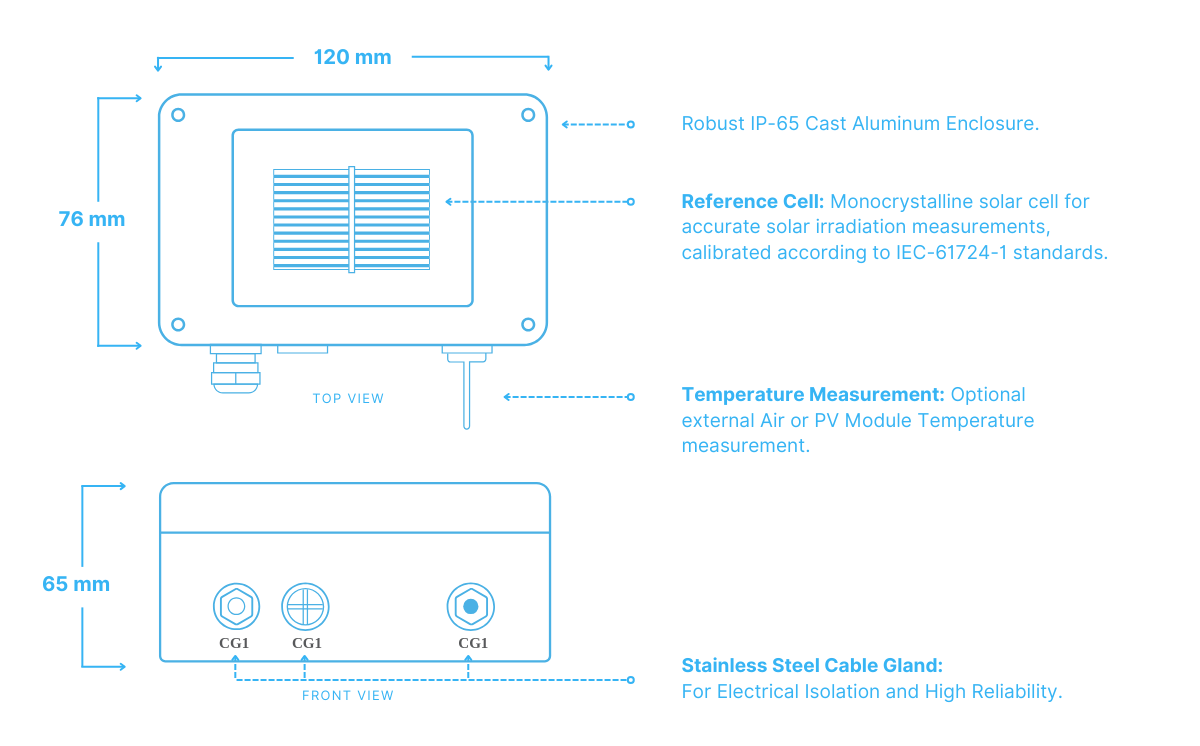

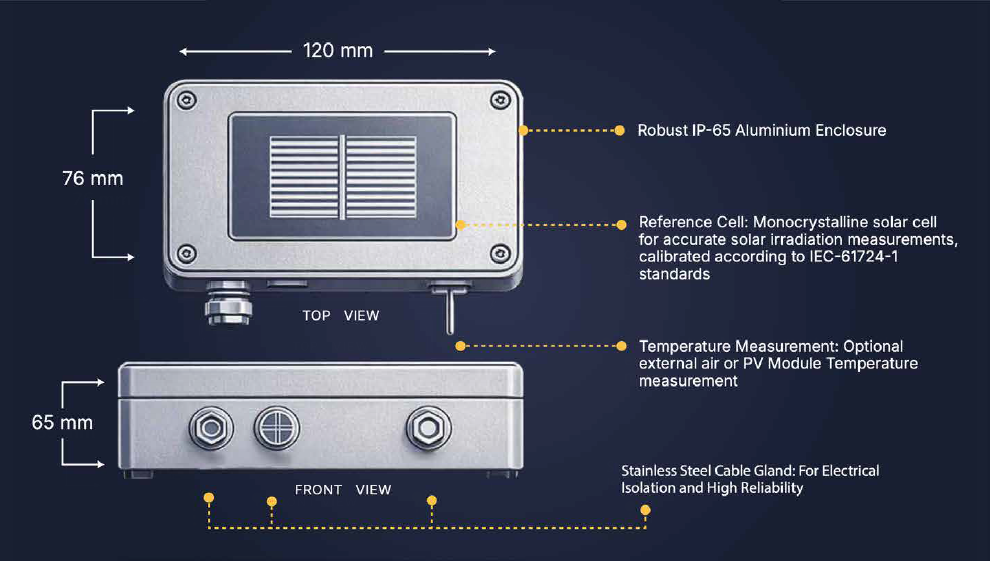

| Irradiation Sensor Enclosure Size | 120 (L) x 76 (W) x 65 (H) mm |
| Weight | 300 grams |
| Mounting Clamp (suitable for mounting on PV module side) | SS 304 |
| Cable Terminals | 1.5 sq. mm. copper |
| Integrated Ambient Temperature Sensor | 40mm x 4mm (SS304) (Optional) |
| Cable Glands | M12 x 1.5mm |
| Ambient Operating Temperature | -30°C to 70°C |
| Ambient Operating Humidity | 0 to 99% RH |
| Power Consumption (At 12 VDC) | (4 – 20mA) 50mW & (RS-485) 100mW |
