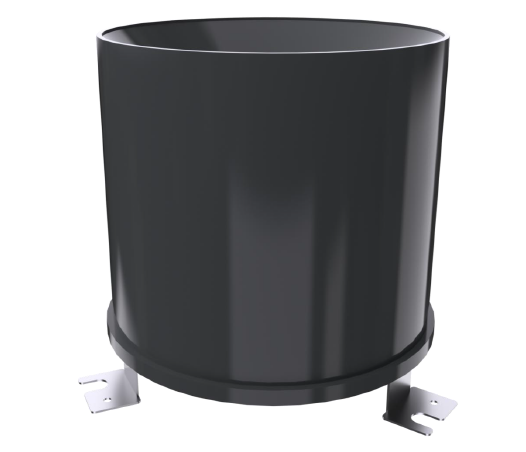

Rain Gauge - MBMet-200
Reliable Precipitation Monitoring Across Environments
The MBMet-200 Series is built to deliver accurate, real-time rainfall measurement for a wide range of field conditions. These sensors are essential in solar weather monitoring systems, irrigation analysis, flood risk detection, and environmental studies, where timely and precise precipitation data supports both automation and analytics.
Technology Variants for Diverse Needs
Available in tipping bucket and piezoelectric models, MBMet-200 rain gauges support both pulse output and digital RS-485 Modbus communication. This allows seamless deployment in projects ranging from IEC 61724-1 compliant solar plants to compact weather stations and smart city nodes.
Durable and Deployment-Ready
Constructed using weather-resistant materials and optimized for low maintenance, MBMet-200 units are suitable for installation in utility-scale solar farms, pole-mounted enclosures, or industrial zones requiring continuous rainfall tracking. These sensors are designed to perform in high-humidity, high-dust, and temperature-variable environments.
Benefits & Features
- Tipping bucket and piezoelectric technology options
-
Tipping Bucket Model
- Accuracy: ±2%
- Resolution: 0.2 mm - Supports pulse and Modbus RTU output formats
- Integrates with MBLogger 1000/Nano and third-party systems
- Compliant with IEC 61724-1 for solar monitoring standards
- Built for harsh outdoor environments with stable calibration
- Compact design for pole and junction box integration
- Minimal maintenance with long-term field durability
Technical Specification
Model/Parameters Table
| Model | MBMet-200 (Tipping Bucket) |
|---|---|
| Principle | Self-emptying bucket mechanism |
| Accuracy | ±0.2 mm (7mm/s) |
| Resolution | 0.2 mm |
| Operating Temp | -40°C to +60°C |
| Stability | ±1 mm/year |
| Orifice Area | 200 cm² |
| Output | Pulse signal, compatible with digital dataloggers |
General Specifications:
| Parameter | Value |
|---|---|
| Operating Temperature |
-40°C to +60°C (MBMet-200) -40°C to +75°C (MBMet-200S) |

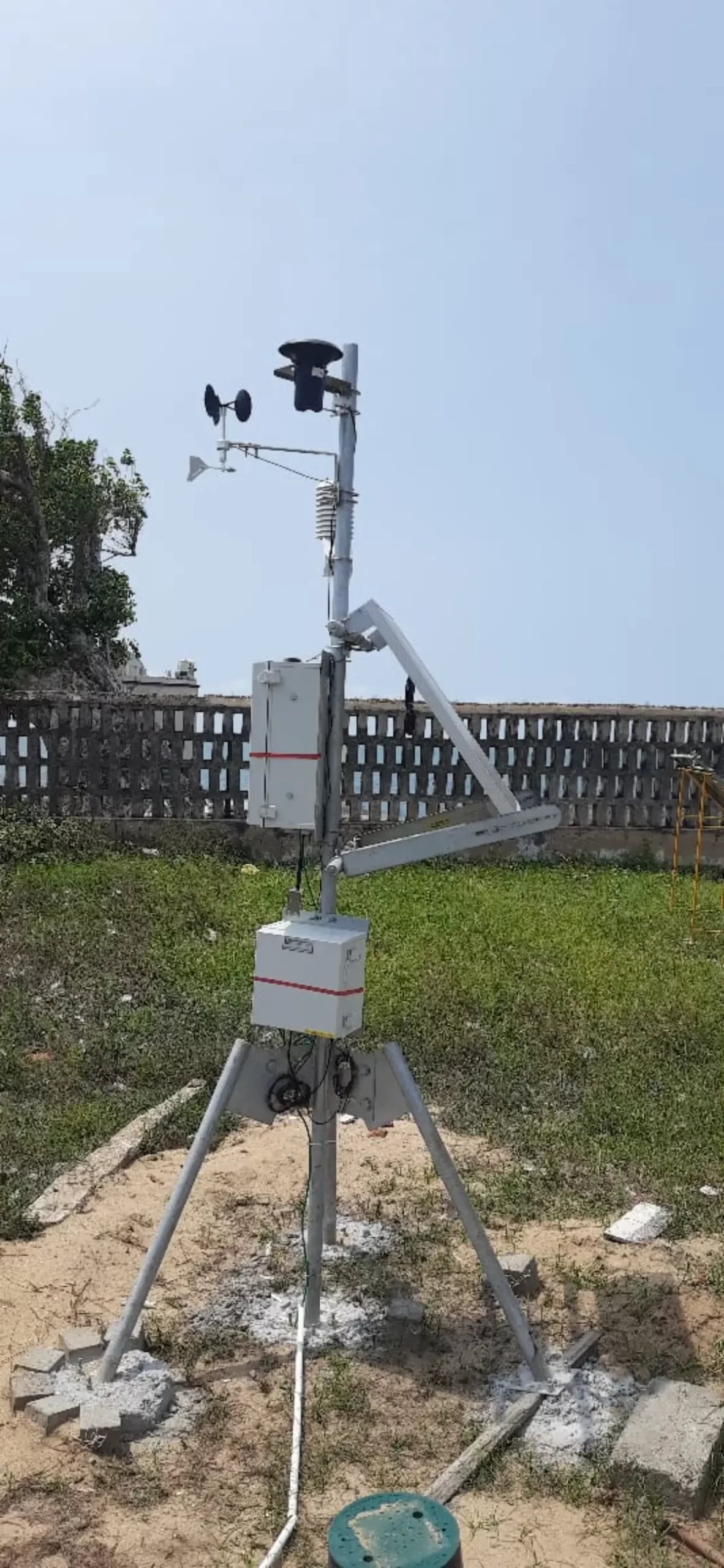

In Application
