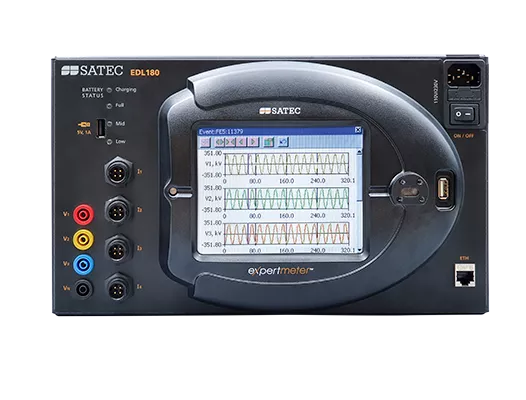

Portable Power Quality Analyzer - EDL180
Portable Analyzer
-
IEC 61000-4-30 Class A
-
IEC 62053-22
-
-
-
-
Portable (Class A, Ed. 3) PQ Analyzer
The EDL180 is a portable version of the Class A (Edition 3) PM180 power quality analyzer,
which holds extensive track record serving as the platform for power quality monitoring
systems in worldwide national grids.Equipped with a 24V battery for backup power supply
andflexible current clamps, it is fitted in a lightweight traveling bag for convenient handling
Benefits & Features
- Power quality EN50160 reports
- GOST 32144 reports
- Waveform capture and event recording @ 256 samples/cycle
- Built-in: RS485; ETH; IRIG-B
- Optional ports: 2G/3G
Technical Specifications
| Power Meter | |
|---|---|
| Power: True RMS volts, amps, power, power factor, neutral current, angles and unbalance for voltage and current, frequency, symmetrical components and many more | |
| Event and parameter data-logging | |
| Sampling frequency: up to 256 samples/cycle | |
| Power Quality | |
|---|---|
| NMI certified for Class A, Edition 3, per IEC 61000-4-30 | |
| EN50160 / GOST 32144 monitoring, statistics & reports | |
| Event statistics complimented by waveform recording in 8 channels (4 voltage inputs, 4 current inputs) @ 256 samples/cycle | |
| V-I angle, THD, TDD and K factor for Voltage and Current and up to the 63rd order harmonic; individual harmonics for V, I, P, Q | |
| Including directional power harmonics (Load or Source) | |
| Inter-harmonics | |
| Disturbance Direction Detection (upstream/downstream) | |
| Flicker according to IEC 61000-4-15 | |
| Logging, Recording & Programming | |
|---|---|
| Programmable controller: up to 64 control setpoints, up to 8 conditions OR, AND, arithmetical functions logic, extensive triggers, programmable thresholds and delays, relay control, event-driven data recording | |
| 9 fast waveform recorders: simultaneous 8-channel AC, one DC | |
| Waveform sampling rate 32, 64, 128 or 256 samples per cycle | |
| Up to 3.5 min. of continuous waveform recording | |
| 16 fast Data Recorders (16 parameters on each data log): From ½ cycle RMS to 2 hour RMS envelopes; programmable data logs on a periodic basis and on internal or external trigger | |
| ½-cycle response time | |
| 32 digital internal counters | |
| 16 internal programmable timers (½ cycle to 24 hours) | |
| Current Inputs | |
|---|---|
| 3V AC: inputs for generic current clamps (Rogowski) | |
| Voltage Measurement Inputs | |
|---|---|
| Nominal voltage | 690V AC |
| Operating range | up to 828V AC |
| 5th AC/DC voltage input | up to 300V DC (monitoring substation battery) |
| Communication interfaces | |
|---|---|
| Built-in | |
| RS-485 | |
| USB | |
| ETH 10/100Base-T | |
| IRIG-B | |
| Optional/additional: (1 per device) | |
| 3G GSM; incl. 2nd RS485 port | |
| Communication Protocols | |
|---|---|
| Modbus | |
| ASCII | |
| DNP 3.0 | |
| IEC 60870-5-101/104 | |
| IEC 61850 | |
| Display | |
|---|---|
| Graphic color display: 5.7″ touchscreen | |
| Real-Time Clock & Synchronization | |
|---|---|
| Real-Time Clock with maximum 5 seconds drift per month @ 25°C | |
| Provides 1 msec time resolution via IRIG-B time code input or satellite clock for common time base (requires IRIG-B module) | |
| As an SNTP client, it can accept periodic synchronization of the meter clock from an SNTP server | |
| Power Supply | |
|---|---|
| 85-265V AC / 88-290V DC | |
| Installed UPS backup: over 4 hours of work at full consumption | |
| Enhanced Meter Security | |
|---|---|
| 3 levels Password security for protecting meter setups and accumulated data from unauthorized changes | |
| Defining up to 20 users in different access levels | |
| HACS: special 40mA inputs for SATEC’s High Accuracy Current Sensors | |
| Extra-complex password is required | |
| Access and configuration log is automatically and continuously recorded, documenting all user activity | |
