Engineered for Wind-Sensitive Environments

The MBMet-100 Wind Speed Sensor is built for high-precision monitoring in outdoor environments where wind conditions directly impact performance and safety. Whether installed in solar PV plants, environmental stations, or industrial rooftops, the sensor delivers dependable real-time wind data to support automation, alarms, and performance analytics.

Precision Meets Durability

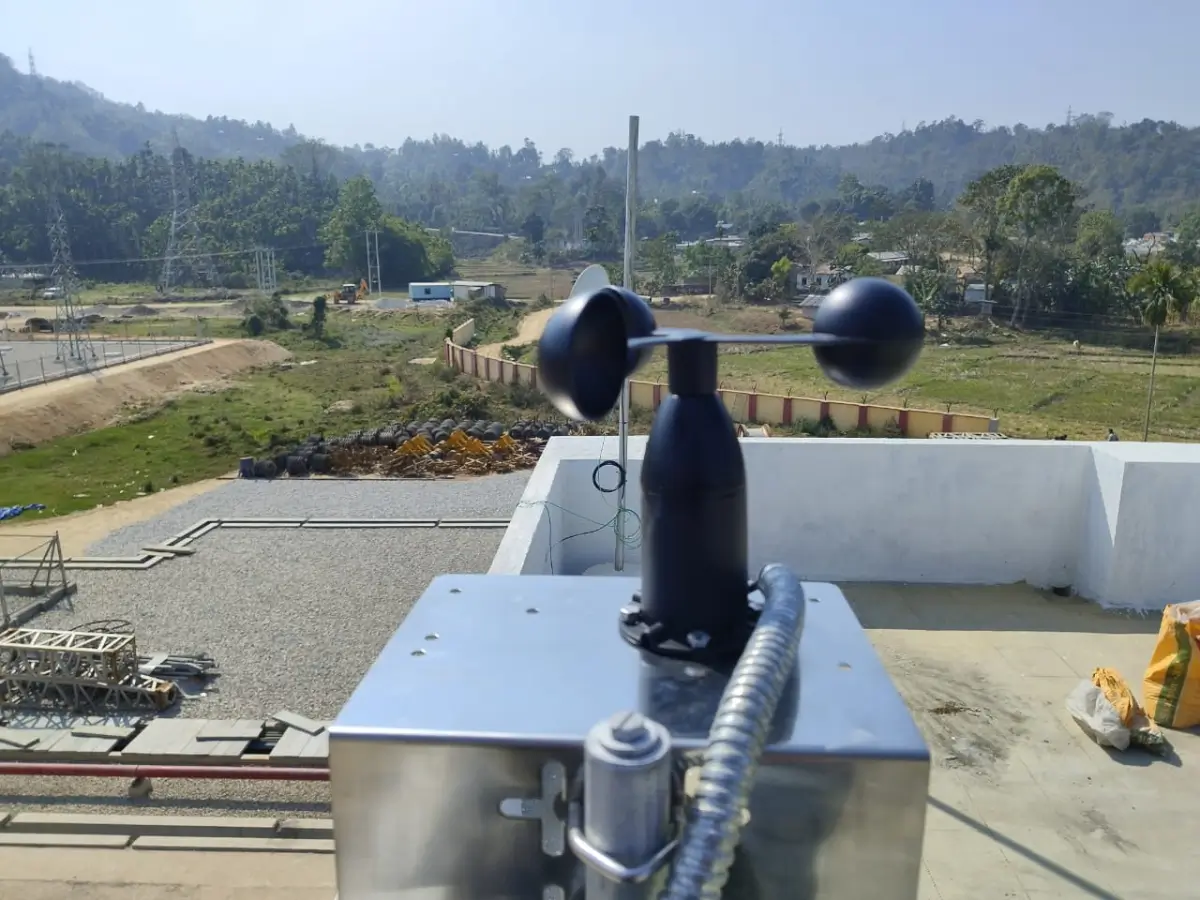

At the core of the MBMet-100 is a rugged 3-cup anemometer with a low startup threshold of ≤0.5 m/s, ensuring reliable wind detection in low-flow environments. It provides accurate wind speed measurements with ±2% full-scale accuracy, depending on the model variant. Built with an anodized aluminum body and UV-resistant polycarbonate cups, the sensor is engineered for long-term durability in harsh outdoor environments, including dust-prone, coastal, and high-radiation zones. Its performance remains consistent across a wide temperature range of –30°C to +70°C, and it is rated to withstand wind speeds up to 70 m/s, making it ideal for solar power plants, industrial weather stations, and safety-critical monitoring systems.

Flexible Integration Options

Available in multiple output formats— Analog (4–20 mA / 0–5 V), and RS-485 Modbus RTU—the MBMet-100 integrates easily with SCADA systems, RTUs, data loggers, and MBLogger series devices. It complies with IEC 61724-1 standards, making it ideal for solar tracker systems, wind-based alarm triggers, and long-term performance ratio analysis.

Built for Scalable Deployment

Designed with a standard threaded base, pre-shielded cables, and a compact, lightweight form factor, the MBMet-100 can be mounted quickly onto tracker arms, weather masts, or junction boxes. With a field-proven track record across installations ranging from 5 MW rooftops to 500 MW utility-scale solar plants, it offers unmatched reliability with minimal maintenance.

Variants Available

• MBMet-100A – Analog Output (4–20 mA)
• MBMet-100B – RS-485 Modbus Output
• MBMet-100C – Voltage Output (0–5 V)
• MBMet-100D – Voltage Output (0–10 V)

BENEFITS AND FEATURES

• High Accuracy: ±2% of Full Scale (variant-dependent) for dependable wind speed measurement
• Low Startup Threshold: Begins sensing wind from as low as 0.5 m/s
• Extreme Climate Readiness: Operates from –30°C to +70°C speeds up to 70 m/s
  and withstands wind
• IEC 61724-1 Compliant: Ideal for performance monitoring in solar power plants
  r
• Corrosion-Resistant Build: Anodized aluminum body with UV-stabilized plastic rotor cups
• Standard Output Options: Available in pulse or analog variants
• Compact & Lightweight: Easy to mount on poles, towers, junction boxes, or tracker heads
• Minimal Maintenance: Low-drift mechanical design with robust, field-proven bearings
