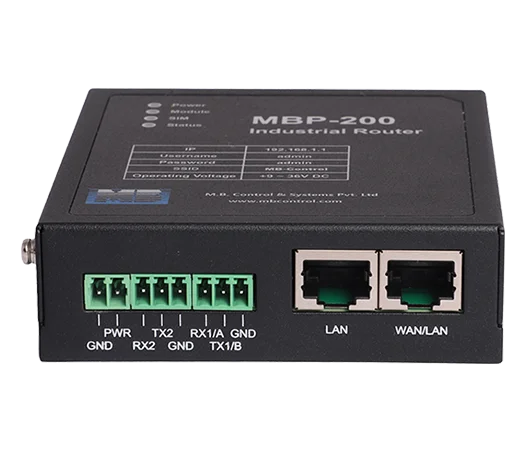

The MBP-200 Dual SIM Cellular Communication Router is designed to provide Secure and Reliable Connectivity for Remote Locations. With Cellular (2G - 5G), Wifi, and Ethernet connectivity and additional Features such as Dual SIM, Failover and VPN Support, the MBP-200 Cellular Router is ideal for a Large range of Applications such as Renewable Energy, Electrical Utilities, Sub-Stations, Telemetry, Smart Cities, etc...
| Cellular Standards | |
|---|---|
| Standards and Frequency Bands | LTE-TDD B38 / B40 / B41 LTE-FDD B1 / B2 / B3 / B4 / B5 / B7 / B8 / B20 / B28 WCDMA / HSPA+ B1 / B3 / B5 / B8 GSM / GPRS / EDGE 850 / 900 / 1800 MHz |
| Bandwidth | FDD: Downlink: 100 Mbps, Uplink: 40 Mbps DC-HSPA+: Downlink: 42 Mbps, Uplink: 5.76 Mbps HSPA+: Downlink: 21 Mbps, Uplink: 5.76 Mbps HSDPA: Downlink: 7.2 Mbps, Uplink: 5.76 Mbps UMTS: 384 Kbps |
| Transmit Power | < 23 dBm |
| Receiver Sensitivity | > -97 dBm |
| Wifi Standards | |
|---|---|
| Standards and Frequency Bands | IEEE 802.11 b/g/n |
| Bandwidth | IEEE 802.11 b/g: 54 Mbps IEEE 802.11 n: 150 Mbps |
| Secure Encryption | WEP, WPA, WPA2, WPA3 and other Encryption Modes |
| Transmit Power | 20 dBm (11n), 24 dBm (11g), 26 dBm (11b) |
| Receiver Sensitivity | < -72 dBm @ 54 Mbps |
| Network Protocols | |
|---|---|
| WAN | Static IP, DHCP, PPPOE, 2G / 3G / 4G / 5G |
| VPN Client | PPTP, L2TP, IPSEC, OPENVPN, GRE |
| VPN Server | PPTP, L2TP, IPSEC, OPENVPN, GRE |
| Configuration | Remote Management, SYSLOG, SNMP, TELNET, SSHD, HTTPS, HTTP, SMS |
| Network Protocols | TCP/IP UDP HTTP, HTTPS NTP TELNET DDNS APN / VPDN DHCP Server / Client |
| Security | SPI Firewall VPN Traversal Access Control URL Filtering, etc. |
| Others | DHCP Binding MAC Address, DDNS, Firewall, NAT, DMZ Host, QOS, Traffic Statistics, Real-Time Display of Data Transmission Rate, SMS, Phone Ringing, Network Data Trigger Online / Offline |
| Power, Hardware, and Interfaces | |
|---|---|
| CPU | Industrial Grade 32 Bit Processor |
| FLASH | 16 MB |
| DDR2 | 64 MB |
| Power Supply | 9 - 36 VDC |
| Standby Power Consumption | 95 mA @ 12 VDC |
| Communication Power Consumption | 150 mA @ 12 VDC |
| Button | Reset Button |
| SIM / UIM | 2 Standard SIM Card Interfaces. 1.8V / 3V SIM / UIM Card 15 KV ESD Protection |
| Indicator Light | 1 Power Light (Red) 1 Network Light (Green) 1 SIM Card Light (Green) 1 Online Light (Green) |
| Serial Ports | 1 RS232 Port, 1 RS485 Port Data Bits: 5, 6, 7, 8 Bits Stop Bits: 1, 1.5, 2 Bits Parity: No Parity, Even Parity, Odd Parity Baud Rate: 4800 - 115200 |
| WAN | 1 x 10 / 100 Mbps Ethernet Port Adaptive MDI / MDIX 15KV ESD Protection |
| LAN | 1 x 10 / 100 Mbps Ethernet Port Adaptive MDI / MDIX 15KV ESD Protection |
| Physical Properties | |
|---|---|
| Dimensions | 94 x 89 x 28 mm (Not including Antenna + Mounting) |
| Weight | Approx. 330g |
| Operating Temperature | -35C to +75C |
| Storage Temperature | -40C to +85C |
| Relative Humidity | 95% RH (Non Condensing) |
