Graphic Touch Screen - RGM180
Graphic Touch Screen
Graphic Touch Screen

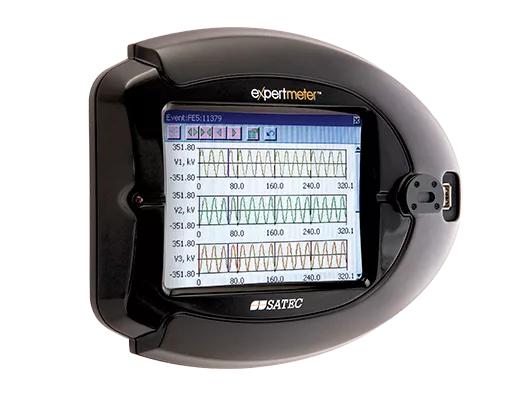

The RGM is a 5.7’’ color graphic touch-screen, used for the display of information
such as real-time parameters, waveforms or phasor diagrams. The RGM can interface one
single device or up to 32 SATEC devices over serial communication, or up to 36
devices over 10/100 Base-T Ethernet.
Benefits & Features
- 5.7” color touch-screen: TFT technology with LED backlight
- Programmable system setup
- Multi-lingual support
- Plug & Play meter detection
- Supports nearly all SATEC devices
Technical Specifications
| Communication | |
|---|---|
| RS-485 communication port; up to 480kb/s | |
| ETH 10/100Base-T | |
| Physical Dimensions | |
|---|---|
| Weight: 1.54 lbs / 0.7 kg | |
| H×W×D: 7.1×8.7×1.9″ / 181×221×48 mm | |
| Environmental / Durability | |
|---|---|
| Wide range operating temperature: –20°C to +70°C / –4°F to +158°F | |
| More than 500,000 touch screen operation lifetime | |
| Power Supply | |
|---|---|
| Power over Ethernet (PoE) | |
| External AC/DC-DC/DC. | |
