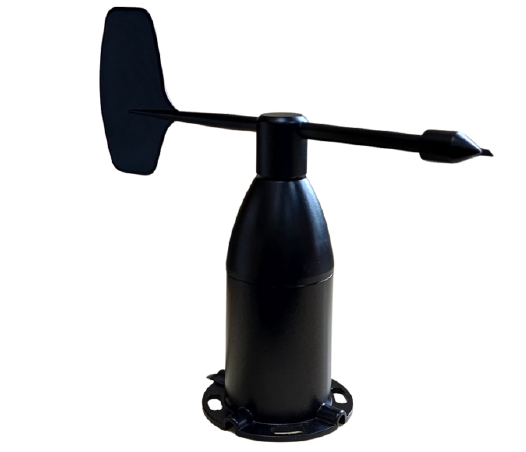

Economic Wind Direction Sensor - MBMet-110
Wind Direction Sensors
The Wind Direction Sensor is a rugged, field-ready instrument designed
to provide reliable 360° wind direction monitoring for solar plants, weather stations,
and industrial safety systems. It uses a high-precision wind vane with sealed mechanics
to ensure consistent operation in challenging outdoor environments.
With support for analog outputs (0–5 V / 0–10 V / 4–20 mA) and Modbus RTU,
the MBMet-110 integrates seamlessly with SCADA systems, data loggers, and solar
tracker controllers. Its IP65-rated housing, corrosion-resistant body, and compliance
with IEC 61724-1 make it a durable and accurate solution for long-term wind monitoring.
Benefits & Features
- 360° wind direction measurement with 1° resolution
- < ±2% FS accuracy across full operating range
- Multiple output types: Analog voltage, 4–20 mA, Modbus RS-485
- Corrosion-resistant housing with IP65 protection rating
- UV-resistant vane materials for outdoor durability
- Supports IEC 61724-1 solar monitoring requirements
- Low start-up threshold for early wind detection
- Compatible with MBLogger and third-party SCADA systems
- Compact and easy-to-mount on tracker poles or junction boxes
Model/Parameters Table
| Model | MBMet-110 A | MBMet-110B | MBMet-110 C | MBMet-110 D |
|---|---|---|---|---|
| Measuring Range | 0–360° | 0–360° | 0–360° | 0–360° |
| Communication Output | 4–20 mA | RS-485 Modbus |
0–5 V | 0–10 V |
| Accuracy | ±3° | ±2° | ±3° | ±3° |
| Resolution | 1° | 1° | 1° | 1° |
Electrical Specifications
| Parameter | value |
|---|---|
| Input Voltage | 12 to 24 VDC |
| Power Consumption | ≤ 20 mA @ 12 VDC |
| Body Material | Vane: 304 Stainless SteelBody: Aluminum Alloy |
| Weight (Packed) | 500 g (with standard 3-meter cable) |
Measurement Performance
| Parameter | Value |
|---|---|
| Starting Wind Speed | < 0.5 m/s |
| Response Time | ≤ 1 second |
General Specifications
| Parameter | Value |
|---|---|
| Operating Temperature | Operating Temperature –30°C to +70°C |
| Ingress Protection | IP65 |
| Storage Conditions | 10°C to 60°C @ 20% to 90% RH |
| Cable Type / Length | UV-protected cable / 3 meters |
| Dimensions | Vane Length: 220 mmHeight: 160 mm |
