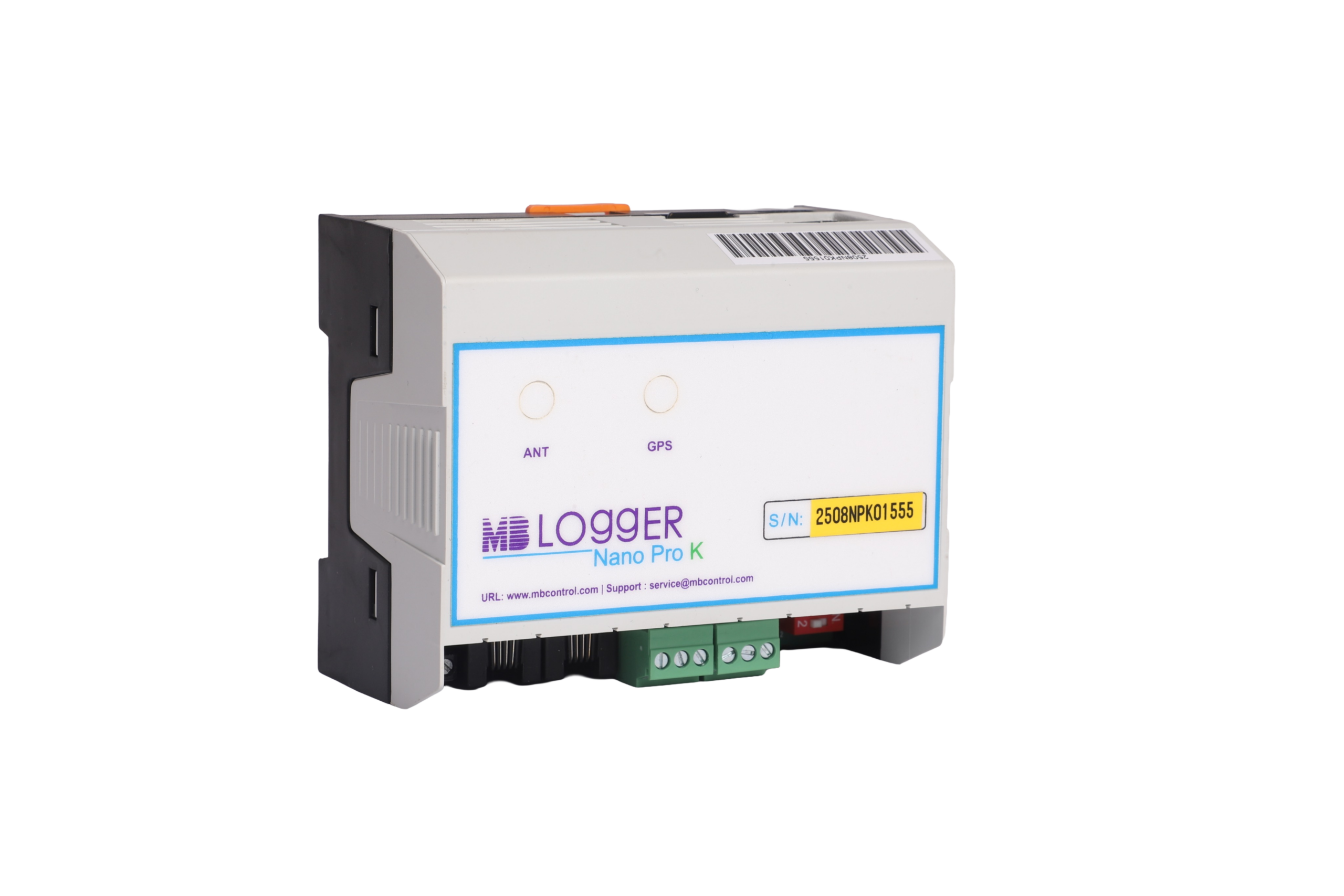

The MBLogger Nano is a compact and affordable datalogger from MBMet’s range of measurement and control devices. Designed for small meteorological applications,it is ideal for installations that require a compact, low-power, and powerful datalogger. The device uses a 32-bit ARM processor and a 24-bit ADC to ensure accurate, high-resolution data collection from sensitive sensors.
It includes a battery-backed RTC that can be updated through the built-in GPS or via SNTP from external GPS units. The built-in GPS module also provides accurate geo-location of the station where the datalogger is installed.
The Nano comes with a built-in cellular modem capable of transmitting data to the cloud using MQTT, FTP, and SFTP. It includes an RS-485 Modbus port and a TCP/IP port for configuration, data download, and Modbus communication. Users can choose between two configurable input ports (4–20mA, 0–1V, 0–10V, Pulse) or two RJ-11 ports for Davis wind and rain sensors.
All programming is done through the built-in web server, making configuration and installation simple. The datalogger offers advanced analytics such as filtering,min/max, sunrise and sunset timing, daily cumulative energy, daily rainfall, albedo, and sunshine duration.
| General Specifications | |
|---|---|
| Micro-Processor | 32-bit ARM Processor |
| RTC | Temperature Compensated RTC |
| ADC | 24-Bit |
| DATA LOGGING | |
|---|---|
| Datalogging Time Period | Site Configurable |
| Expandable Memory | SD Card 16GB / 4GB eMMC |
| Data Transfer | FTP via Modem and ETH Ports |
| ELECTRICAL | |
|---|---|
| Voltage Input | 9–32 VDC |
| Power Consumption | With Cellular Modem: 2.80 W at 12 VDC Without Cellular Modem: 1.35 W at 12 VDC |
| INBUILT MODEM / GPS (OPTIONAL) | |
|---|---|
| Network | Quad-Band 4G Modem |
| Frequency Band | LTE CAT 4 GSM: 900 / 1800 |
| ENVIRONMENTAL | |
|---|---|
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -50°C to +80°C |
| Humidity | 95% max – non-condensing |
| PORTS – NANO PRO ONLY | |
|---|---|
| Analog Inputs | 4–20 mA (16-bit) |
| mV (0–10,000 mV) | Differential – 16-bit |
| mV (0–1,000 mV) | Differential – 16-bit |
| Sampling Rate | 10 Hz |
| Accuracy | ±0.1% |
| Max Input Frequency | <100 Hz |
| Statistics | Totalisation, Wind Speed Calculation |
| PHYSICAL | |
|---|---|
| Protection | IP42 |
| Dimensions (W × H × L) | 90 × 62 × 80 mm |
| Mounting | DIN Rail |
| Weight | 350 g (Approx.) |
| Housing Material | Polycarbonate |
| SPECIAL FUNCTIONS (LICENSED SEPARATELY) | |
|---|---|
| Day Sunrise and Sunset Time | |
| Day Duration | |
| Day Solar Energy | |
| Day Sunshine Duration | |
| Albedometer Ratio | |
| Day Rainfall |
| PORTS | |
|---|---|
| Serial Ports | 1 RS-485 Port |
| Configurable Baud Rate | 9,600 and 19,200 bps |
| Optical Isolation | 2.5 KV RMS |
| Ethernet Port | 1 |
| Protocols Supported | MODBUS TCP/IP (Master & Slave), SNTP Client, HTTP, FTP, MQTT, UDP, TCP, IPV4 |
| Datalogger Configuration | Via in-built web server |
| PORTS – NANO K ONLY | |
|---|---|
| RJ11 Ports | 2 × RJ11 Ports (Suitable for Davis Sensors) |
